Inno-16.0 LV
Inno-16.0 LV, our advanced low-voltage lithium battery designed for superior energy storage performance.
Product Features
Easy installation
Reduced volume by 60%, weight decreased by 25%, convenient for single-person handling.
Ultra Safe
Intelligent fire extinguishing system that reacts automatically within just 3 seconds.
Automatic Self-heating
Optional operating temperature range from minus 20°C up to 55°C.
Smart Management
Smart energy management with instant alerts, wireless control, and automatic upgrades.
Parameter
Download
Parameter
| Technical Specification — Inno-16.0 lv | |
|---|---|
| Battery | |
| Rated Capacity | 15360Wh (314Ah) |
| Nominal Voltage | 51.2V |
| Discharge Voltage Range | 43.2V – 58.4V |
| Standard Charging Current | 100A |
| Max Charging Current | 200A |
| Max Discharging Current | 200A |
| Depth of Discharge | 95% |
| Communication Interface | CAN / RS485 |
| Cycle Life | ≥8000 cycles, 25±2°C, 0.5C, EOL 80% |
| Working Temperature Range | Charge: 0°C – 50°C | Discharge: -20°C – 60°C |
| Storage Temperature | -10°C – 60°C |

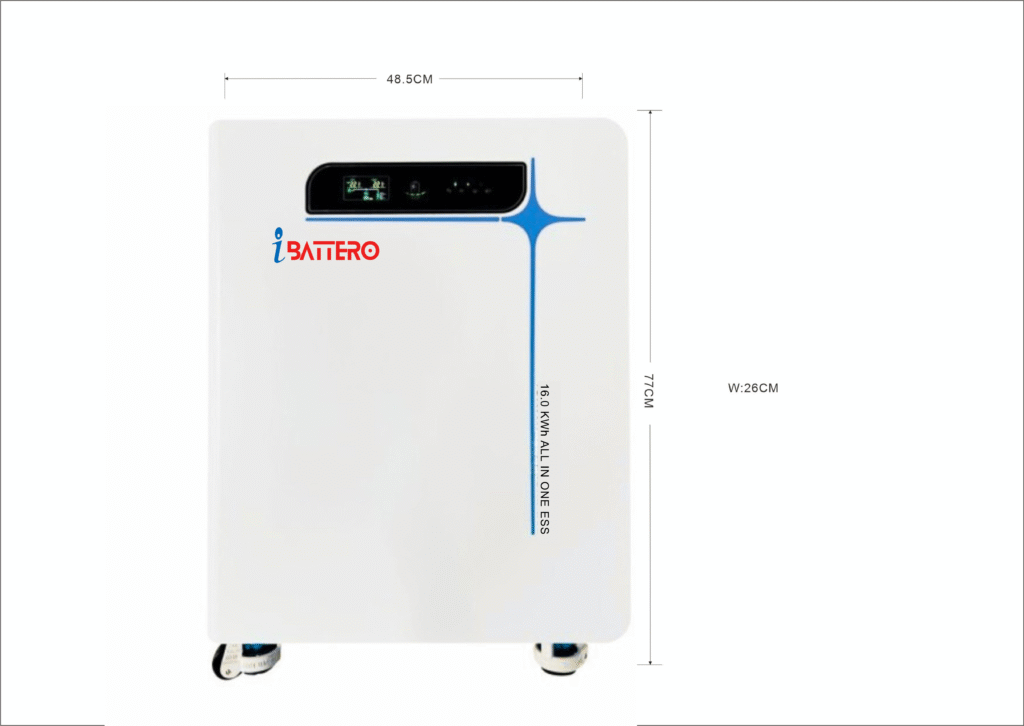

| Dimension (W×D×H) | 48.5 × 26 × 77 cm |
