GENSTOR 261 KWH

Diesel Generator Replacement BESS

All-in-one Commercial & Industrial Battery Energy Storage System engineered for reliability and peak performance.

Contact Us: 84482 95009
Innocepts Solar Logo GENSTOR 261 kWh BESS

* Product image is for illustrative purposes only and may differ from the actual product features based on Use case Requirements.

Integrated Innovative Design

GENSTOR – 261 KWH Product

The GENSTOR 261 KWH liquid-cooled energy storage system adopts integrated innovative design with higher safety standards, easier management, and higher benefits.

  • ✓ Highly Integrated: Battery, BMS, PCS, fire protection, and temperature control in one system.
  • ✓ Modular & Scalable: Standardized plug-and-play design allows for easy building-block expansion.
  • ✓ Flexible Application: Supports on-grid and off-grid applications, AC three-phase three-wire and four-wire.
  • ✓ Advanced Communication: Supports Ethernet and wireless communication functions for remote management.
Advantages

High Performance & Safety

🛡️

Ultimate Safety

Built-in Aerosol / Perfluorohexanone fire protection system with liquid-cooled thermal management ensuring absolute operational safety.

⚡

High Efficiency

130kW output with <3% THDi, ensuring stable, high-quality power delivery for critical industrial loads.

🌐

Smart Management

Comprehensive Modbus / IEC104 communication protocols for seamless remote monitoring and energy dispatch optimization.

Detailed Datasheet

GENSTOR 261 kWH - Key Specifications

A comprehensive overview of the technical parameters driving our commercial storage system.

Technical Specification - Parameter
Battery
Battery TypeLiFePO4
Rated Charge/Discharge0.5C
Rated Voltage (V)832
Operating Voltage (V)728–949
Cell Rated Capacity (Ah)314
Rated Capacity (kWh)261.248
System Composition1P260S
AC Output (On Grid)
Rated Output Power (kW)130
Rated Output Current (A)187
Rated Grid Voltage (V)3/N/PE, 230/400
Rated Grid Frequency (Hz)50/60
Power Factor Range1 (0.9 Leading ~ 0.9 Lagging)
THDi<3% (@Rated Power)
AC Output (Off Grid)
Rated Output Power (kW)130
Rated Output Current (A)187
Rated Output Voltage (V)3/N/PE, 230/400
Rated Output Frequency (Hz)50/60
Unbalanced Load Capacity100%
General Parameters
Ingress ProtectionIP54
Cooling MethodBattery (Liquid), Electrical (Air)
Fire Protection SystemAerosol / Perfluorohexanone
Relative Humidity0–95%, Non-condensing
Temperature Range (°C)-20 ~ +50
Altitude (m)4000 (>2000 derating)
CommunicationRS485 / CAN
Communication ProtocolModbus / IEC104
Weight (kg)≈2700
Dimensions (W×D×H) (mm)1000 × 1400 × 2400
Delivery MethodIntegral transportation
CertificatesEN62477-1:2012; EN IEC 61000; EN 50549-1/10; NC RfG; PTPIREE; VDE; CEI 0-21; C10/11; NTS; EIFS; TOR; G99; NF EN 50549-1:2019; NF EN 50549-10:2022; EN 50549-1:2019+A1:2023

Note: Specifications subject to change; as per the actual use case Requirement.

📄 Download GENSTOR 261KWH Datasheet
Support

FAQ for GENSTOR 261 KWH C&I BESS

What is the lifespan of the GENSTOR 261 kWh BESS? +

The system utilizes premium LiFePO4 cells offering an extended cycle life of up to 8,000 cycles, ensuring reliable performance for 10-15 years depending on usage patterns and depth of discharge.

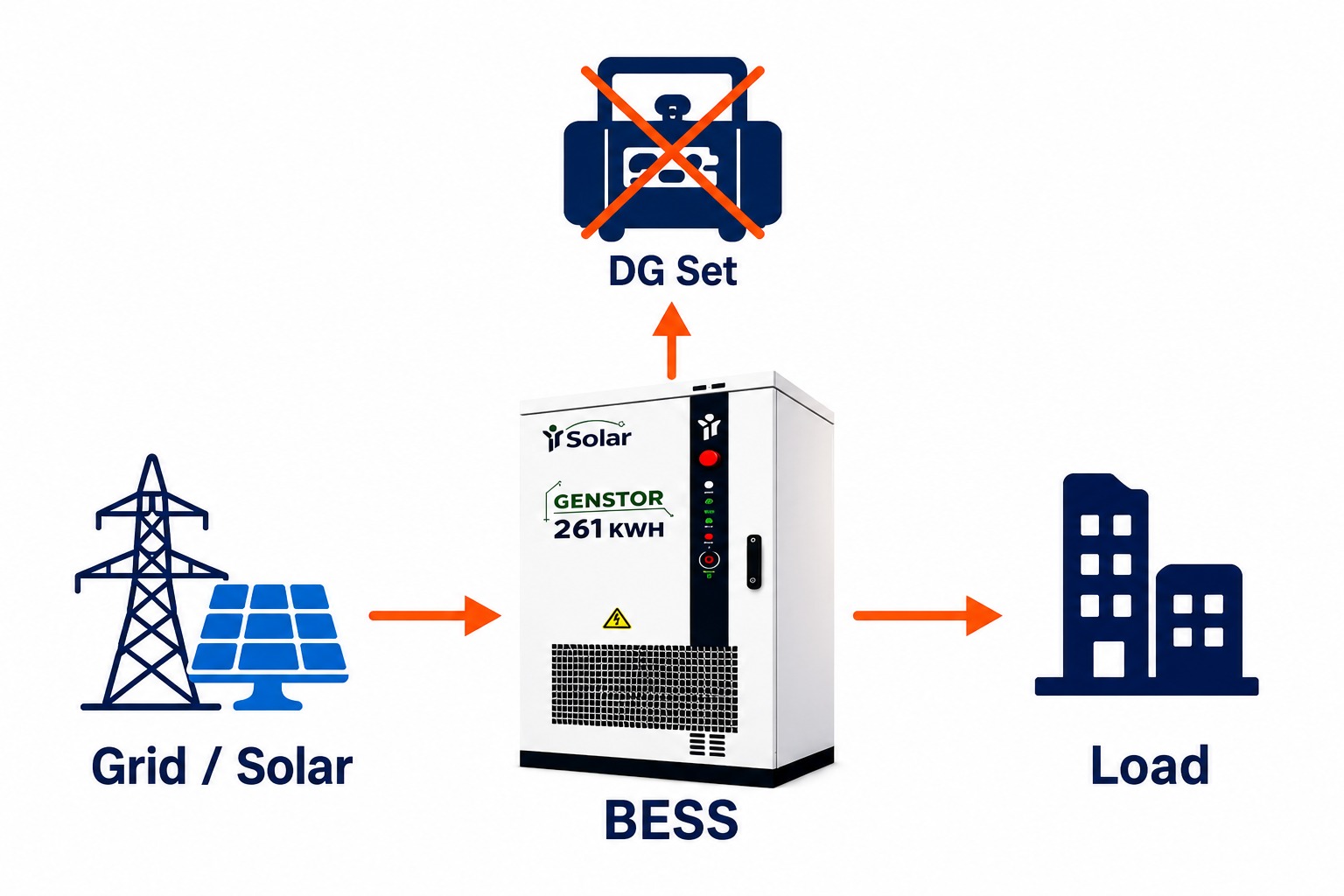

Can it completely replace a Diesel Generator? +

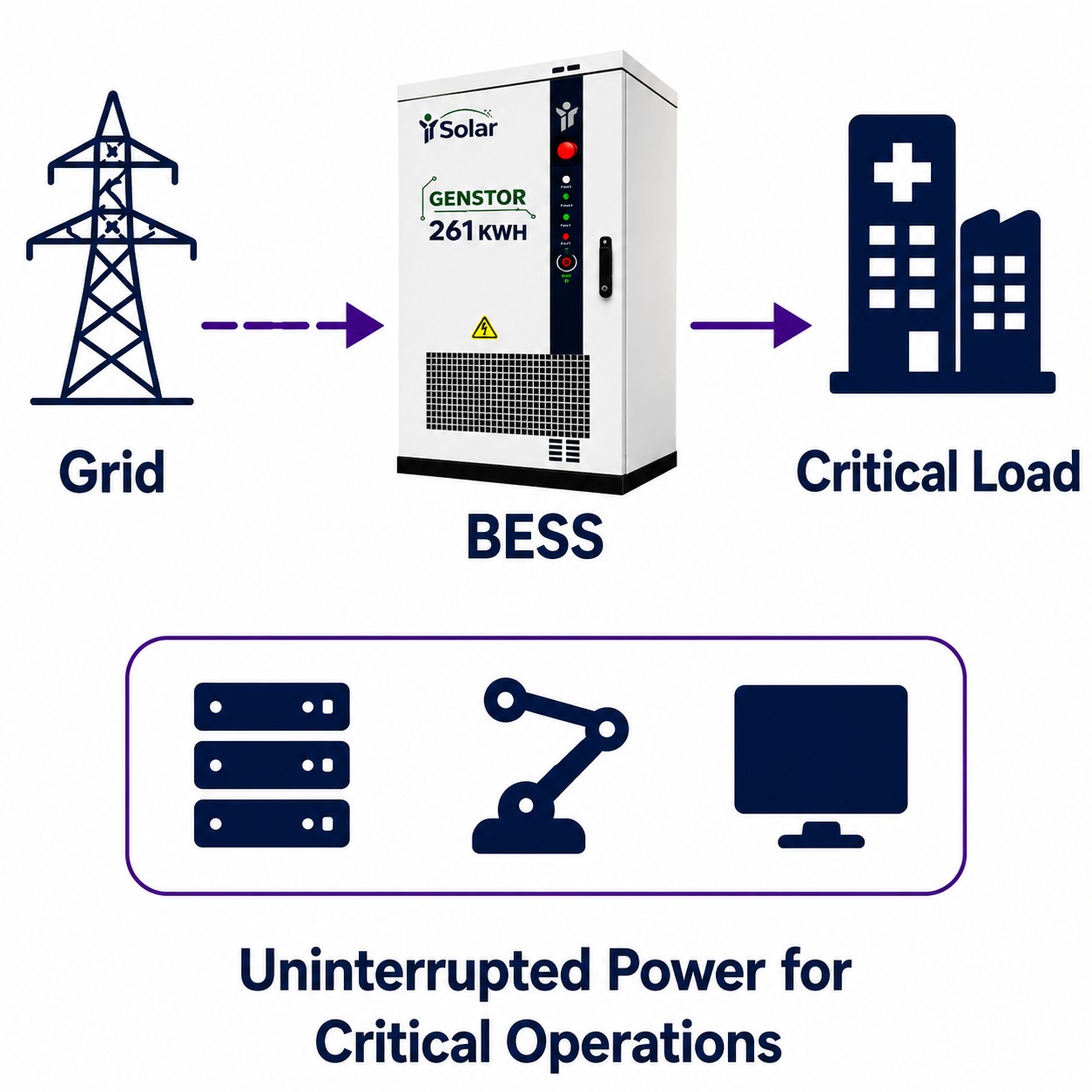

Yes, the GENSTOR 261 functions as a complete Diesel Generator Replacement BESS. It provides instantaneous seamless backup power without emissions, noise, or fuel dependency, making it highly cost-effective.

Is the system scalable if our energy needs increase? +

Absolutely. The GENSTOR series features a standardized modular design. You can easily expand capacity by linking multiple units together in a plug-and-play building-block format.

What environments is the cabinet suited for? +

The IP54 rated enclosure with advanced liquid cooling allows operation in diverse environments with temperatures ranging from -20°C to +50°C and altitudes up to 4000m.
