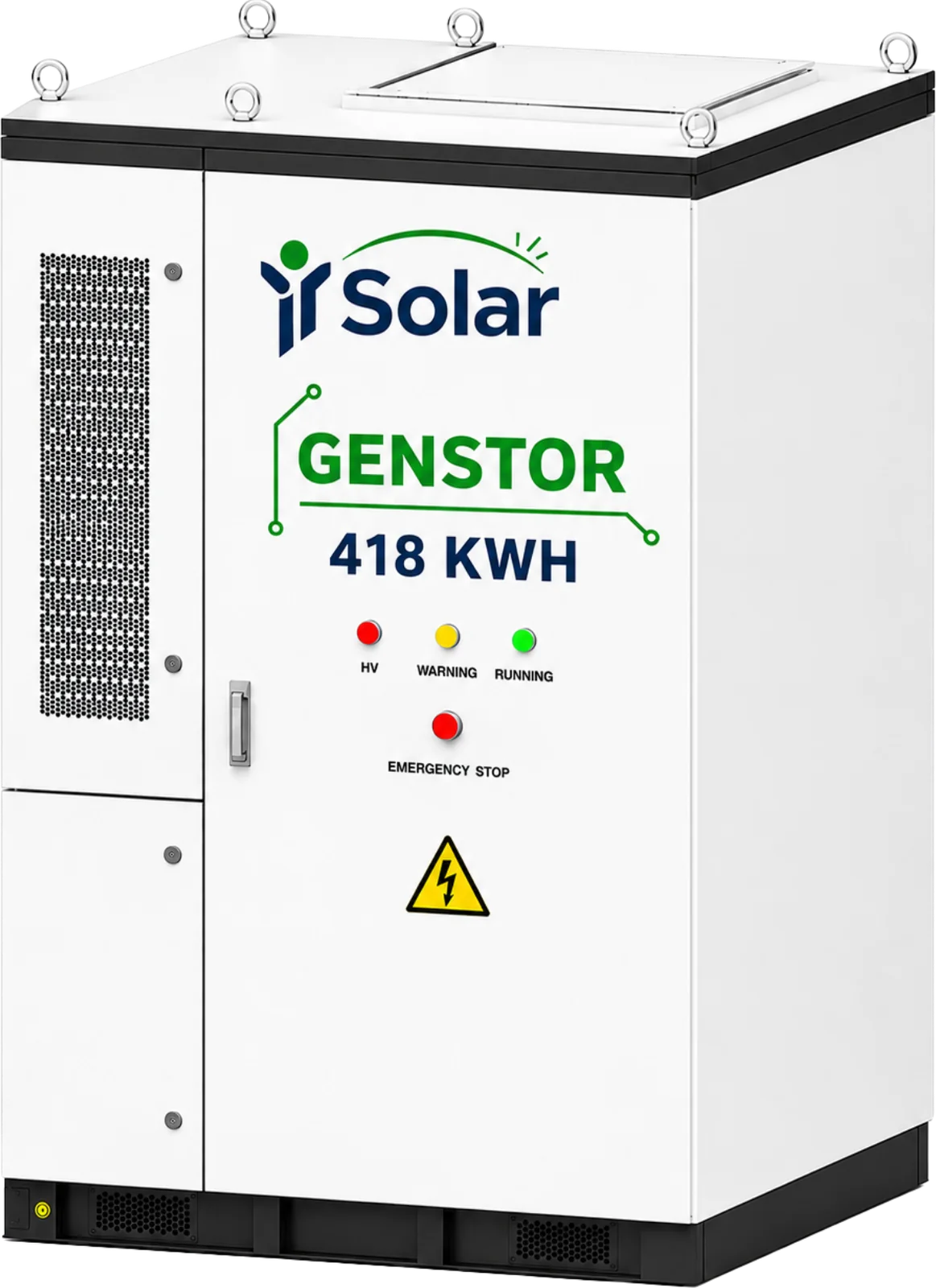

GENSTOR – 209 KW / 418 KWH
All in one C&I Energy Storage system
Diesel Generator Replacement BESS
Diesel Generator Replacement BESS
*Product image is for illustrative purposes only and may differ from the actual product features based on Use case Requirements.
| Parameter | Specification |
|---|---|
| Battery Type | LiFePO₄ |
| Energy Capacity | 418 kWh |
| Rated Power | 209 kW |
| Voltage Range | 1040 – 1500 V |
| Grid Connection | 3W/PE, 690 V (-15% ~ +10%) |
| Power Factor | 0.9 Leading ~ 0.9 Lagging |
| THDi | <3% |
| Cooling | Liquid (Battery) + Air (Electrical) |
| Protection Rating | IP54 |
| Fire Protection | Aerosol / Perfluorohexanone |
| Communication | RS485 / CAN (Modbus / IEC104) |
| Operating Temp. | -20°C ~ +50°C |
| Dimensions (W×D×H) | 1350 × 1300 × 2350 mm |
| Weight | ~3700 kg |
| Certifications | EN62477-1, EN IEC 61000, EN 50549, VDE, CEI 0-21, G99, NTS, TOR, NC RfG |
*Specifications subject to change; as per the actual use case Requirement.
Download GENSTOR 418 KWH Datasheet
Proactive Alert Cell-level monitoring, early warning
Multi-Level Protection Pack, cluster, cabin isolation
Fire & Explosion Prevention Triple fire protection, vent design
High Conversion System efficiency >=87%
AI-Powered Scheduling Optimized energy dispatch
Maximized ROI Peak shaving & other revenue streams
Cloud Diagnosis Fault identification in seconds
Remote Management Cloud-based monitoring & control
24/7 technical supporting Expert team always on watch
Plug & Play Pre-installed, powered on arrival
Time Saving Drastically reduces installation time
Scalable Design Modular expansion as needed
The GENSTOR 418 kWh system is built for commercial and industrial sites that need serious energy on tap — diesel generator replacement, peak shaving and demand charge control, storing surplus solar for evening use, backup supply for critical loads, and time-of-day tariff arbitrage across manufacturing plants, warehouses, data centres and large commercial buildings.
It provides 418 kWh of usable LiFePO₂ storage at a rated power of 209 kW, operating across a 1040–1500 V range with a power factor from 0.9 leading to 0.9 lagging and THDi below 3%. That is roughly 60% more stored energy than the GENSTOR 261 kWh unit in a single integrated cabinet.

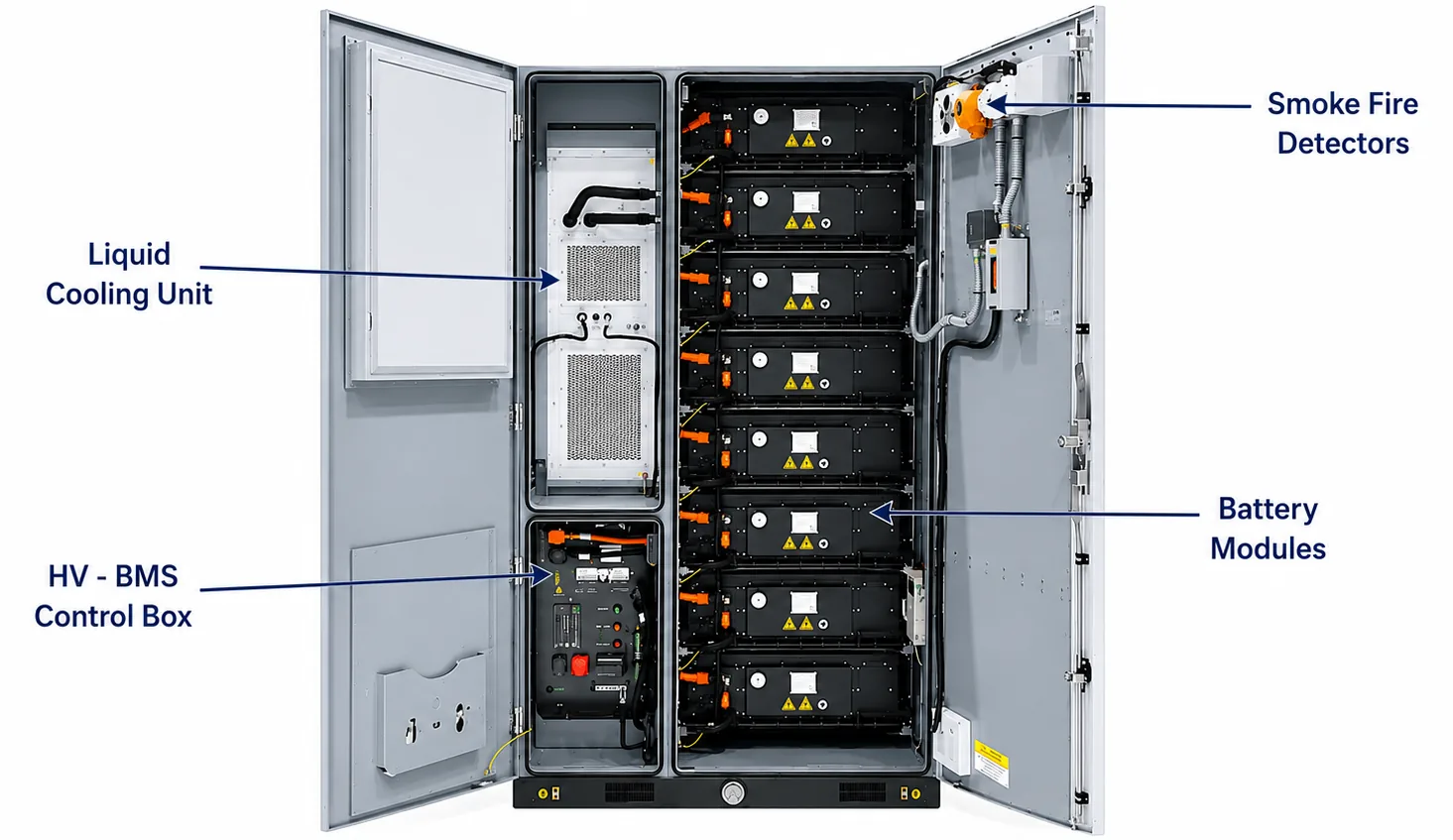

The battery is liquid-cooled while the electrical section is air-cooled, which holds cell temperature even across a -20°C to +50°C ambient range. Safety is layered: cell-level monitoring with early warning, isolation at pack, cluster and cabin level, an IP54 enclosure, and an integrated aerosol / perfluorohexanone fire protection system.
The cabinet arrives pre-assembled and pre-commissioned, so it is effectively plug and play — battery, BMS, fire protection and thermal management are already integrated, which cuts installation time sharply. Once live, RS485 / CAN communication over Modbus or IEC104 supports cloud diagnosis and remote management, backed by 24/7 technical support.
